Name: Belt Conveyor
Brand: Zhengzhou Hengyang Industrial Co., Ltd
SKU: Transportador tipo B
Price: 8,650.00 USD
Availability: InStock

En casa > productos > Máquina de alimentación y transporte >

Belt Conveyor

industrial belt conveyor machine

heavy duty belt conveyor

material handling belt conveyor

Lugar de origen:

Porcelana

Nombre de la marca:

hengyang

Certificación:

ISO9001

Número de modelo:

Transportador tipo B

Contacta con nosotros

Solicitar una cita

Detalles del producto

Capacidad:

50-700t/h

Condición:

Nuevo

OEM:

aceptar

Solicitud:

Materiales de transporte

Garantía:

12 meses

Voltaje:

Hasta el comprador

Condiciones de pago y envío

Cantidad de orden mínima

Precio

5000-12300USD/set

Detalles de empaquetado

Negociado

Tiempo de entrega

15-20 días

Condiciones de pago

T/T

Capacidad de la fuente

300 JUEGOS/mes

PRODUCTOS RELACIONADOS

Transporte de placas de cadena modular

Obtenga el mejor precio

Chain Conveying Feeder

Obtenga el mejor precio

Contacta con nosotros

Contacta ahora

Descripción del producto

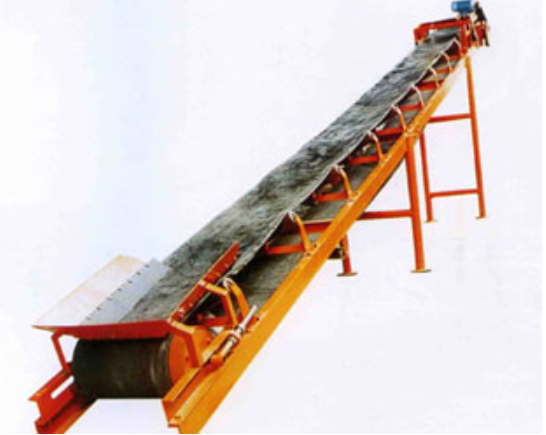

Belt Conveyor

Belt Conveyor is used to convey the loose and unit materials. All can be conveyed single or more machines ,according to the demands .As well as the conveyor system composition of the other conveyor equipments .That can meet all kinds of task .It is used in the scope that environment -45℃ to 46℃.the materials temperature less than 50℃.And it is widely used in mining ,metallurgy ,coal etc industries .

Working Principle Of Belt Conveyor:

When the Belt Conveyor is on operation ,through the friction between belt and transmission drum ,the belt then can move .From the loading point ,the materials is loading on the belt and then unloading from the unloading point.This can form the continuous logistics .Generally ,the materials are loading on the belt and then unloading from the transmission drum, as well as the special unloading equipment .

Characteristics Of Belt Conveyor:

Large delivery value ,simple structure ,convenient maintenance ,low cost and strong generality.

Technical Details:

Belt Width (mm)	Length(m) Power(kw)			Speed (m/s)	Production (t/h)
500	≤12 3	12-20 4-5.5	20-30 5.5-7.5	1.3-1.6	78-191
650	≤12 4	12-20 5.5	20-30 7.5-11	1.3-1.6	131-323
800	≤6 4	6-15 5.5	15-30 7.5-15	1.3-1.6	278-546
1000	≤105 5	10-207 5-11	20-40 11-22	1.3-2.0	435-853
1200	≤107 5	10-20 11	20-40 15-30	1.3-2.0	655-1284
