Name: Rotary Stone Washer Capacity 50 To 800 Tons Per Hour
Brand: Zhengzhou Hengyang Industrial Co., Ltd
SKU: Serie HYSC
Price: 65,350.00 USD
Availability: InStock

En casa > productos > Stone & Sand Washing Line >

Rotary Stone Washer Capacity 50 To 800 Tons Per Hour

Stone Rotary Stone Washer

Rotary Stone Washer

Lugar de origen:

Porcelana

Nombre de la marca:

hengyang

Certificación:

ISO9001

Número de modelo:

Serie HYSC

Contacta con nosotros

Solicitar una cita

Rotary Stone Washer Capacity 50 To 800 Tons Per Hour

Detalles del producto

Color:

Personalizar

Capacidad:

50-800 t/h

Solicitud:

LAVADO DE PIEDRA

OEM:

aceptar

Condiciones de pago y envío

Cantidad de orden mínima

Precio

35000-95700USD/set

Detalles de empaquetado

Negociado

Tiempo de entrega

15-20 días

Condiciones de pago

T/T

Capacidad de la fuente

300 JUEGOS/mes

PRODUCTOS RELACIONADOS

Spiral Sand Washing Machinery with 20-400 t/h Capacity 95%+ Cleaning Rate and Single or Double Spiral Options

Obtenga el mejor precio

Customize PU Spiral Sand Washing Machinery

Obtenga el mejor precio

WET PROCESSING SOLUTIONS Sand Washing Line FOR SAND & GRAVEL

Obtenga el mejor precio

Insutrial Use Rotary Screen Capacity 1-250t/h

Obtenga el mejor precio

Contacta con nosotros

Contacta ahora

Descripción del producto

Rotary Stone Washer offer significant advantages with their trommel design that effectively combines washing and screening functions, delivering high production capacities ranging from 1 to 250 tons per hour while maintaining low operating costs, easy maintenance, and quiet operation. These versatile machines feature fully customizable specifications including drum length/diameter, screen mesh configuration, layer counts, liner plates, mobility options (portable or stationary), and drive tire materials to suit various applications – from small-scale gold wash plants to mini gold trommel operations. The system’s efficient washing is further enhanced by internal water spray pipes and smooth rubber-tired drive mechanisms for reliable performance.

✔ High Efficiency: Removes >80% of sludge, ideal for clay-rich ores.
✔ Robust Structure: Easy maintenance with wear-resistant linings for extended service life.
✔ Multifunctional: Combines washing, grading, and de-sliming, reducing downstream processing load.

Rotary Stone Washer Capacity 50 To 800 Tons Per Hour 0

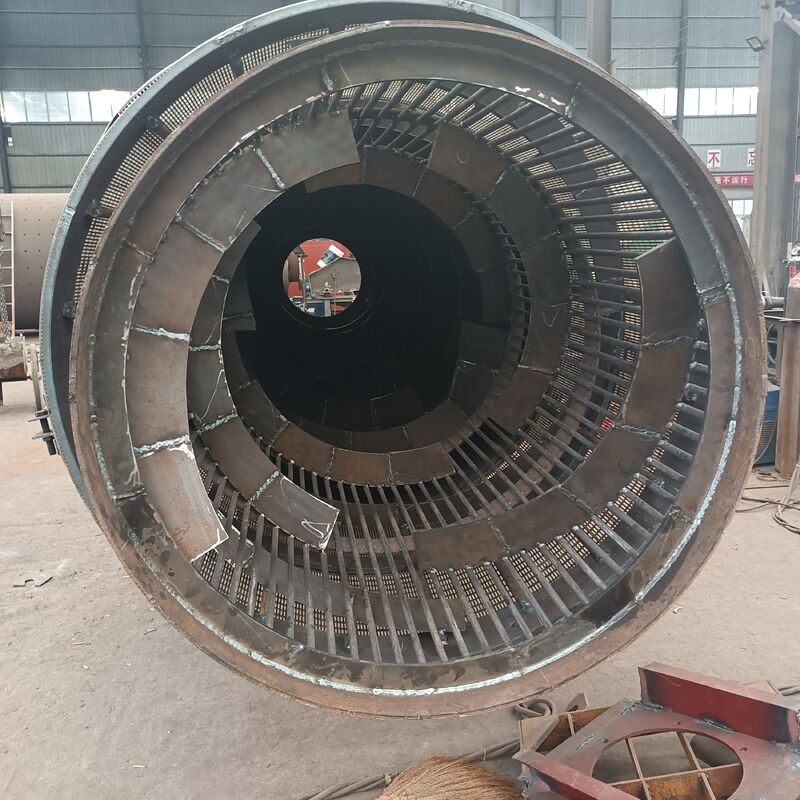

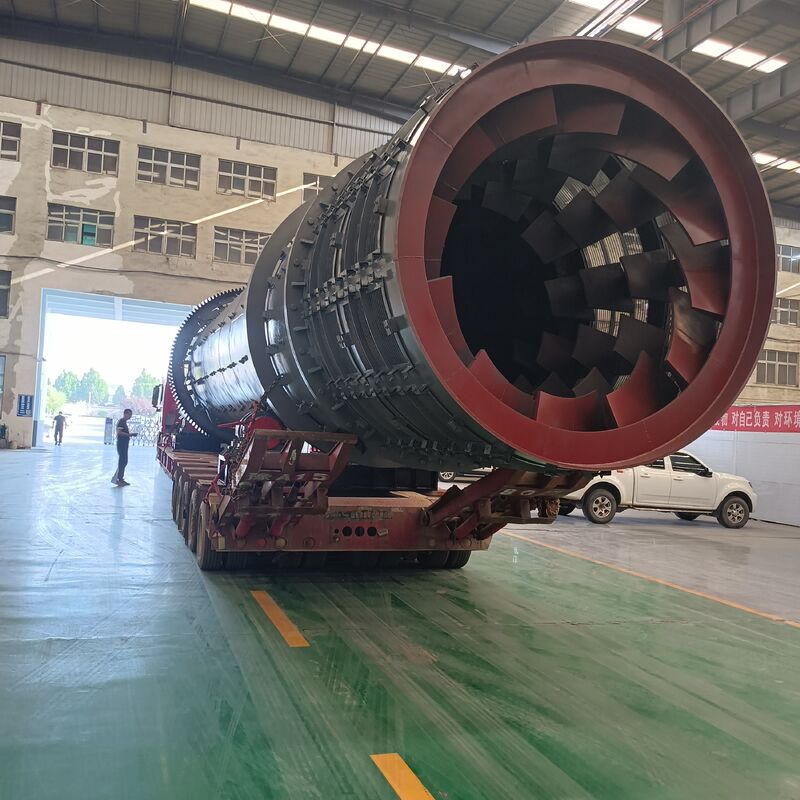

Hengyang Rotary Scrubbers are cylindrical drums with internal lifters, typically supported by trunnion rollers at either end. The continuous lifting and dropping action combined with water helps to abrade, scrub, and break down soluble contaminants. Optional trommel screen extensions can be added to provide rough product separation, screening and dewatering capabilities.

Technical Details

Model	Drum Dia (mm)	Drum & Screen Length (m)	Screen Mesh Size (mm)	Rotation Speed (r/min)	Feeding Size (mm)	Angle of Inclination(°)	Capacity (t/h)	Power (kW)
HYSC-400	400	2m+1.2m	≤20	27.9	≤80	≤10	1-5	3
HYSC-600	600	2m+1.2m	≤25	27.6	≤80	≤10	5-10	4
HYSC-750	750	2.5m+1.5m	≤25	27.6	≤100	≤10	10-20	5
HYSC-900	900	3m+1.8m	≤25	27.6	≤100	≤10	20-40	11
HYSC-1200	1200	4m+2m	≤25	17	≤100	≤10	40-70	15
HYSC-1500	1500	4m+2m	≤50	16	≤100	≤10	70-100	30
HYSC-1800	1800	4m+2m	≤50	16	≤100	≤10	100-150	18.5*2
HYSC-2100	2100	4m+2m	≤50	16	≤1000	≤10	150-200	22*2
HYSC-2400	2400	6m+2.5m	≤50	16	≤100	≤10	200-250	22*4
HYSC-2700	2700	6m+2.5m	≤50	16	≤100	≤10	250-270	55*2
HYSC-3000	3000	6m+2.5m	≤50	16	≤100	≤10	270-300	30*4
HYSC-3200	3200	6m+2.5m	≤50	16	≤100	≤10	300-340	37*4
HYSC-3400	3400	6m+2.5m	≤50	16	≤100	≤10	340-370	45*4
HYSC-3600	3600	6m+2.5m	≤50	16	≤100	≤10	370-400	55*4
