Name: Rotary Scrubbers Powerful And Cleaning Capabilities In Industrial
Brand: Zhengzhou Hengyang Industrial Co., Ltd
SKU: Serie HYSC
Price: 65,350.00 USD
Availability: InStock

En casa > productos > Stone & Sand Washing Line >

Rotary Scrubbers Powerful And Cleaning Capabilities In Industrial

Rotary Scrubbers

Rotary Scrubbers in stone washing

Lugar de origen:

Porcelana

Nombre de la marca:

hengyang

Certificación:

ISO9001

Número de modelo:

Serie HYSC

Contacta con nosotros

Solicitar una cita

Rotary Scrubbers Powerful And Cleaning Capabilities In Industrial

Detalles del producto

Color:

Personalizar

Capacidad:

50-800 t/h

Solicitud:

LAVADO DE PIEDRA

OEM:

aceptar

Condiciones de pago y envío

Cantidad de orden mínima

Precio

35000-95700USD/set

Detalles de empaquetado

Negociado

Tiempo de entrega

15-20 días

Condiciones de pago

T/T

Capacidad de la fuente

300 JUEGOS/mes

PRODUCTOS RELACIONADOS

Spiral Sand Washing Machinery with 20-400 t/h Capacity 95%+ Cleaning Rate and Single or Double Spiral Options

Obtenga el mejor precio

Customize PU Spiral Sand Washing Machinery

Obtenga el mejor precio

WET PROCESSING SOLUTIONS Sand Washing Line FOR SAND & GRAVEL

Obtenga el mejor precio

Insutrial Use Rotary Screen Capacity 1-250t/h

Obtenga el mejor precio

Contacta con nosotros

Contacta ahora

Descripción del producto

Rotary Scrubbers are designed primarily for the removal of loam and light clays and soft, soluble waste materials from aggregates, stone and ore. These units are not intended to replace Log Washers on applications where tough plastic clays are contaminating the material to be cleaned. When these tough clays are fed to a Scrubber, the clay particles may have a tendency to pelletize through the tumbling action of the material. For example, golf ball-sized pieces of plastic clay may not break down and could actually increase in size.

Rotary Scrubbers and Coarse Material Screw Washers are often selected to wash out similar contaminants from aggregate and various ores. The major difference is that Scrubbers can accept larger feed sizes, whereas Coarse Material Screw Washers must have a controlled top size. Since large diameter Scrubber Screens can handle feeds up to 300mm or 12”, they are sometimes used as a primary washer before downstream crushing or screening systems. Rotary Scrubbers Powerful And Cleaning Capabilities In Industrial 0

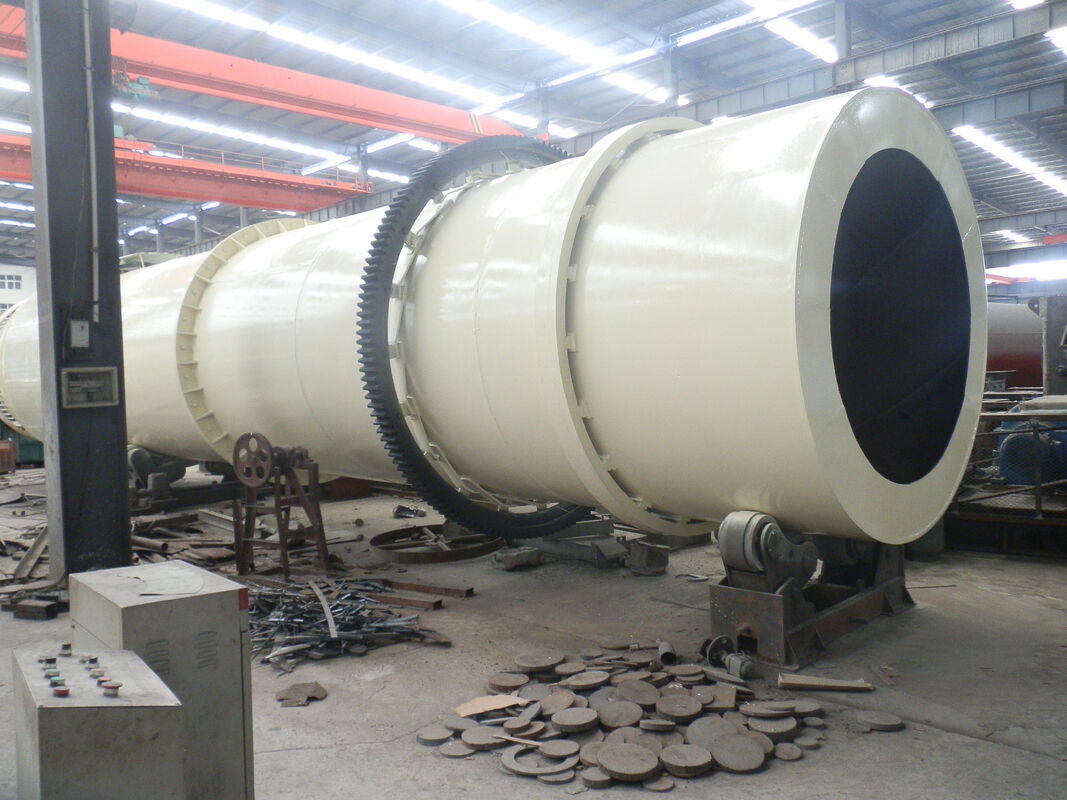

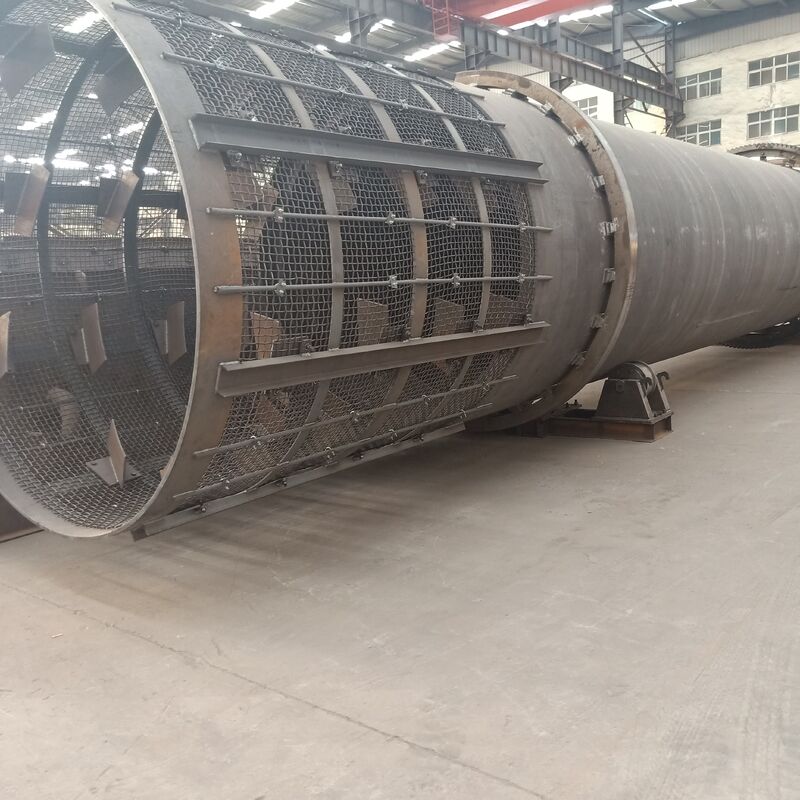

Hengyang Rotary Scrubbers are cylindrical drums with internal lifters, typically supported by trunnion rollers at either end. The continuous lifting and dropping action combined with water helps to abrade, scrub, and break down soluble contaminants. Optional trommel screen extensions can be added to provide rough product separation, screening and dewatering capabilities.

Capacities are normally determined by analyzing the type of feed material, percent and type of waste material to be removed, screen analysis of the feed, available water and if specified, retention time. Retention time in a Rotary Scrubber varies from application to application due to different types and varying amounts of wastes to be removed.

Technical Details

Model	Drum Dia (mm)	Drum & Screen Length (m)	Screen Mesh Size (mm)	Rotation Speed (r/min)	Feeding Size (mm)	Angle of Inclination(°)	Capacity (t/h)	Power (kW)
HYSC-400	400	2m+1.2m	≤20	27.9	≤80	≤10	1-5	3
HYSC-600	600	2m+1.2m	≤25	27.6	≤80	≤10	5-10	4
HYSC-750	750	2.5m+1.5m	≤25	27.6	≤100	≤10	10-20	5
HYSC-900	900	3m+1.8m	≤25	27.6	≤100	≤10	20-40	11
HYSC-1200	1200	4m+2m	≤25	17	≤100	≤10	40-70	15
HYSC-1500	1500	4m+2m	≤50	16	≤100	≤10	70-100	30
HYSC-1800	1800	4m+2m	≤50	16	≤100	≤10	100-150	18.5*2
HYSC-2100	2100	4m+2m	≤50	16	≤1000	≤10	150-200	22*2
HYSC-2400	2400	6m+2.5m	≤50	16	≤100	≤10	200-250	22*4
HYSC-2700	2700	6m+2.5m	≤50	16	≤100	≤10	250-270	55*2
HYSC-3000	3000	6m+2.5m	≤50	16	≤100	≤10	270-300	30*4
HYSC-3200	3200	6m+2.5m	≤50	16	≤100	≤10	300-340	37*4
HYSC-3400	3400	6m+2.5m	≤50	16	≤100	≤10	340-370	45*4
HYSC-3600	3600	6m+2.5m	≤50	16	≤100	≤10	370-400	55*4
