Stainless Steel Rotary Screen Capacity 1-40t /h

Stainless Steel Rotary Screen

40t /h Rotary Screen

Lugar de origen:

Porcelana

Nombre de la marca:

hengyang

Certificación:

ISO9001

Contacta con nosotros

Solicitar una cita

Stainless Steel Rotary Screen Capacity 1-40t /h

Detalles del producto

OEM:

aceptar

Solicitud:

Separación

Uso:

Las demás materias

Capacidad:

1-40t/h

Material:

Tamices de acero inoxidable

Condiciones de pago y envío

Cantidad de orden mínima

Precio

12000-55700USD/set

Detalles de empaquetado

Negociado

Tiempo de entrega

15-20 días

Condiciones de pago

T/T

Capacidad de la fuente

300 JUEGOS/mes

PRODUCTOS RELACIONADOS

Spiral Sand Washing Machinery with 20-400 t/h Capacity 95%+ Cleaning Rate and Single or Double Spiral Options

Obtenga el mejor precio

Customize PU Spiral Sand Washing Machinery

Obtenga el mejor precio

WET PROCESSING SOLUTIONS Sand Washing Line FOR SAND & GRAVEL

Obtenga el mejor precio

Insutrial Use Rotary Screen Capacity 1-250t/h

Obtenga el mejor precio

Contacta con nosotros

Contacta ahora

Descripción del producto

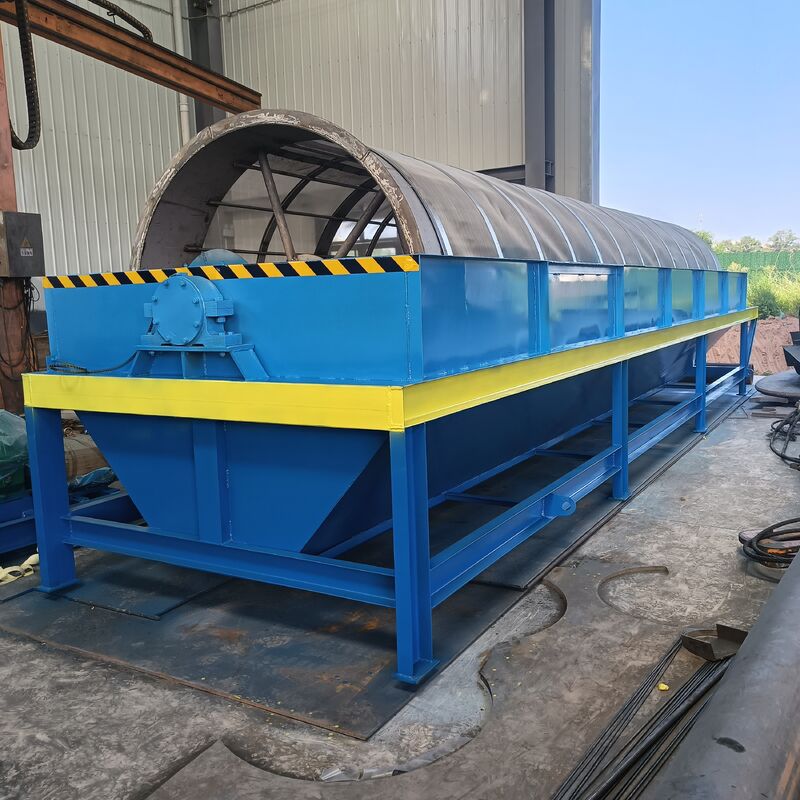

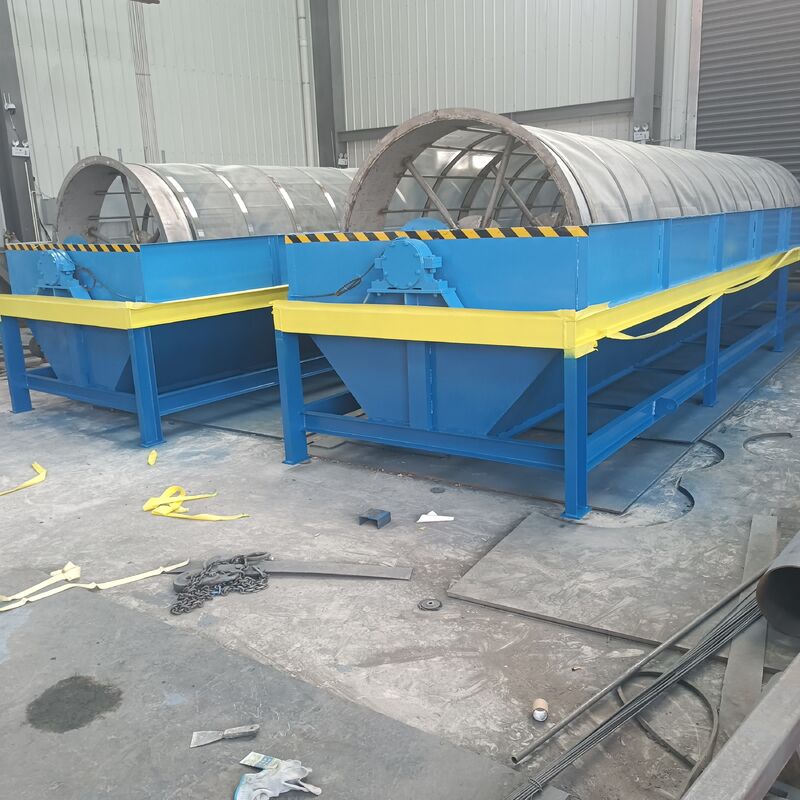

Rotary drum screen, also known as rotary screen, drum screen, rotary screen, serves as a "filtering core" within rotar drum flters, commonly fabricated to a welded stainless steel construction. Its material can be customized as needed - for instance. Selecting SS 904L or duplex 2205/2507 to withstand seawater corrosion, or opting for economical & durable Nylon mesh. Stainless Steel Rotary Screen Capacity 1-40t /h 0

At Hengyang industry, screen types are diverse, encompassing the most frequently used wedge wire screens, woven wire meshes, as well as perforated plates. We'll pick the most suitable option fully based on your application requirements involving fitration accuracy,flow rate...Some specialized drum screens also incorporate pleated design to significantly increase filtration areas.

Application

Stainless Steel Rotary Screen Capacity 1-40t /h 1

Technical Details

Model	Capacity(t/h)	Power(kw)	Drum diameter(mm)	Screen size(mm)	Dimension(mm)	Weight(kg)
1015	10-15	4.0	1000	＜3-10	300014002145	2200
1020	15-25	5.5	1000	＜3-10	346014002145	2800
1225	25-40	7.5	1200	＜3-10	414616002680	4200
1530	60-80	11	1500	＜3-10	446019002820	5100
1545	80-150	15	1500	＜3-10	596019003080	6000
1848	150-200	22	1800	＜3-10	650023004000	7500
